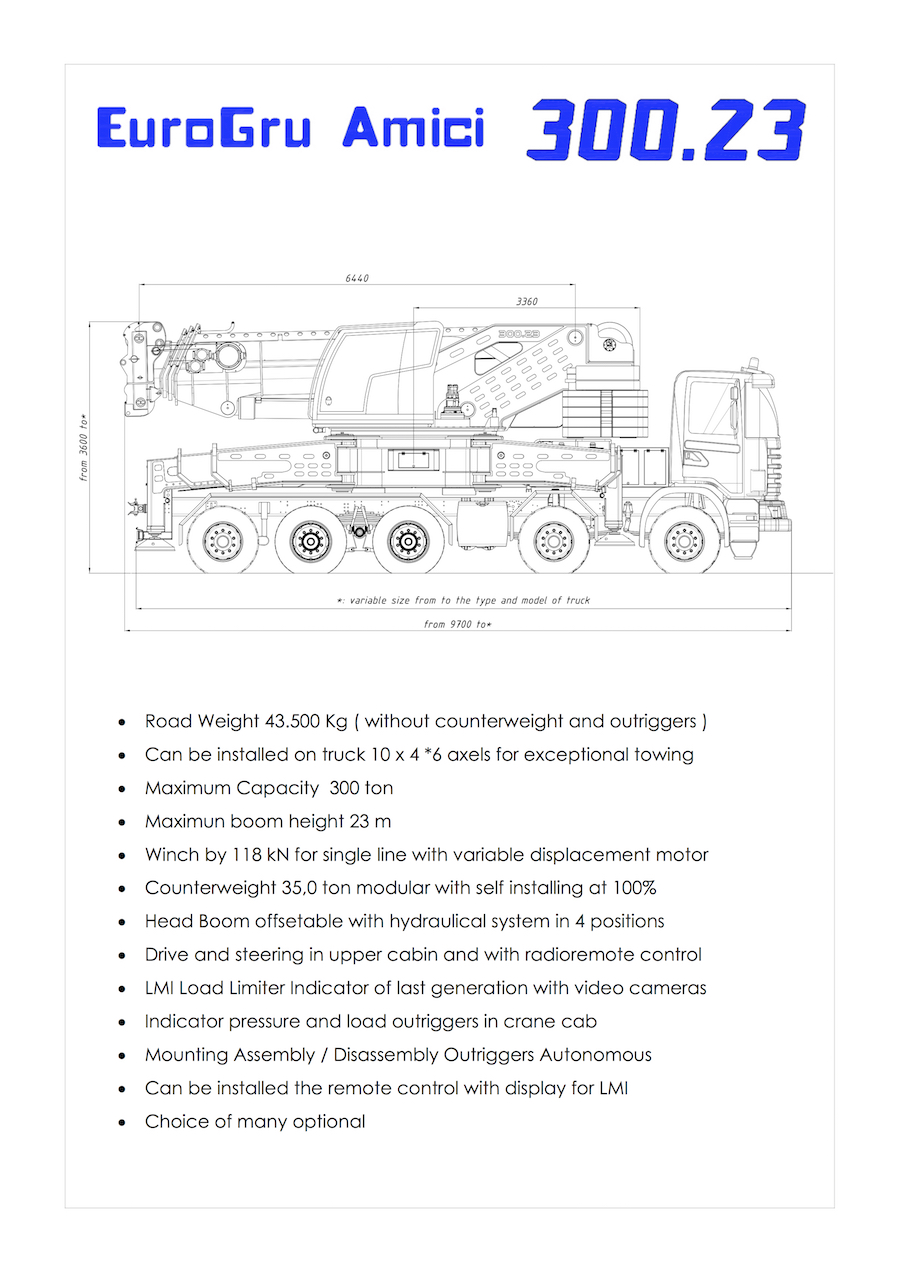

AUTOGRU 300.23


Crane installed on 8x4 or 10x6 commercial truck

  • Road Weight 43.500 Kg ( without counterweight and outriggers )
  • Can be installed on truck 10 x 4 *6 axels for exceptional towing
  • Maximum Capacity  300 ton
  • Maximun boom height 23 m
  • Winch by 118 kN for single line with variable displacement motor
  • Counterweight 35,0 ton modular with self installing at 100%
  • Head Boom offsetable with hydraulical system in 4 positions
  • Drive and steering in upper cabin and with radioremote control
  • LMI Load Limiter Indicator of last generation with video cameras
  • Indicator pressure and load outriggers in crane cab
  • Mounting Assembly / Disassembly Outriggers Autonomous
  • Can be installed the remote control with display for LMI
  • Choice of many optional
Autogru 300.23
Autogru 300.23

DETAILS


Model
300.23
Max Capacity
300.000 kg
Boom Height
three indipendent telescopic boom
