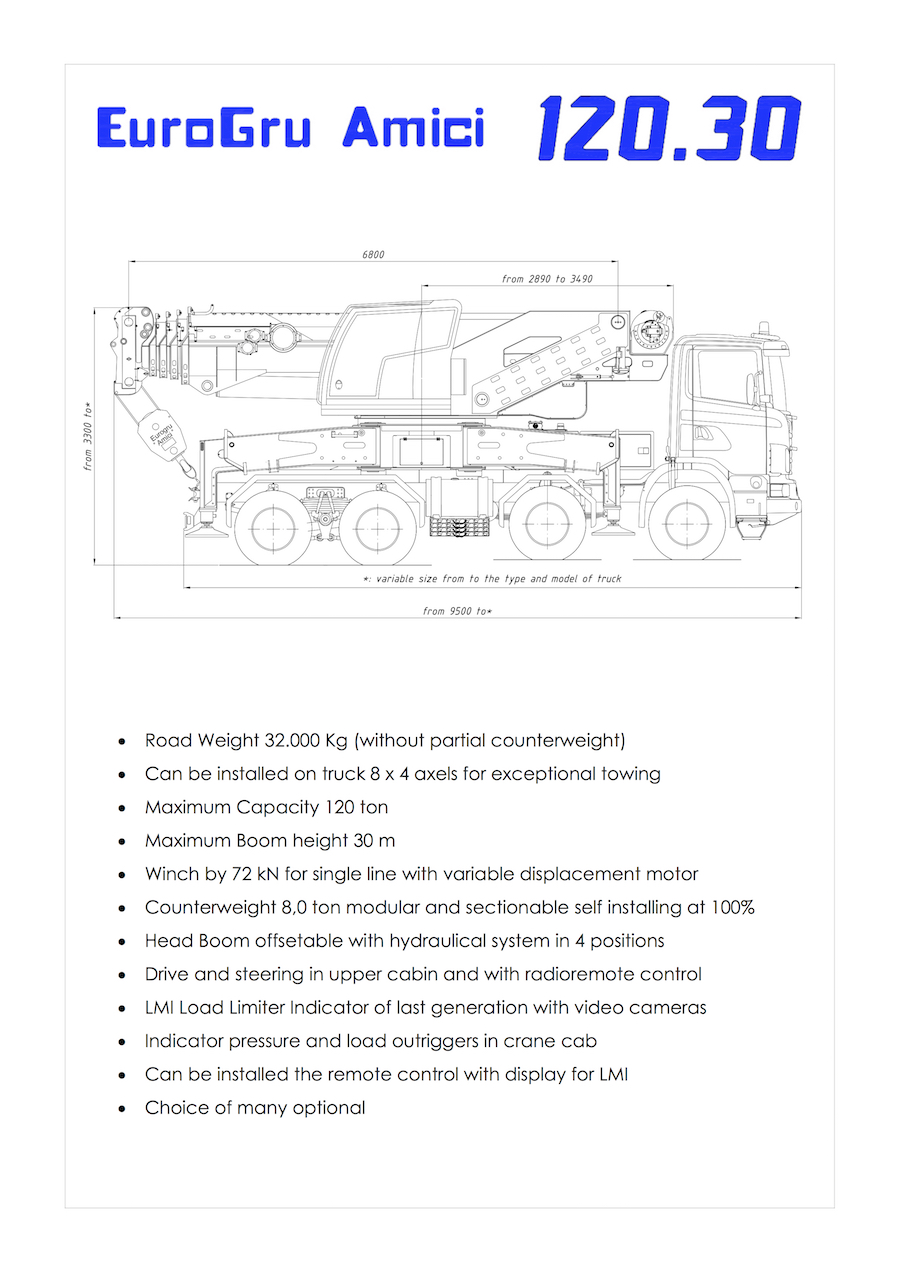

AUTOGRU 120.30


  • Road Weight 32.000 Kg (without partial counterweight)
  • Can be installed on truck 8 x 4 axels for exceptional towing
  • Maximum Capacity 120 ton
  • Maximum Boom height 30 m
  • Winch by 72 kN for single line with variable displacement motor
  • Counterweight 8,0 ton modular and sectionable self installing at 100%
  • Head Boom offsetable with hydraulical system in 4 positions
  • Drive and steering in upper cabin and with radioremote control
  • LMI Load Limiter Indicator of last generation with video cameras
  • Indicator pressure and load outriggers in crane cab
  • Can be installed the remote control with display for LMI
  • Choice of many optional
Autogru 120.30
Autogru 120.30

DETAILS


Model
120.30
Max Capacity
120.000 kg
Boom Height
6,80 - 30,00 mt
